PULL AND CUT WITH REPEATED ACCURACY AND PRECISION

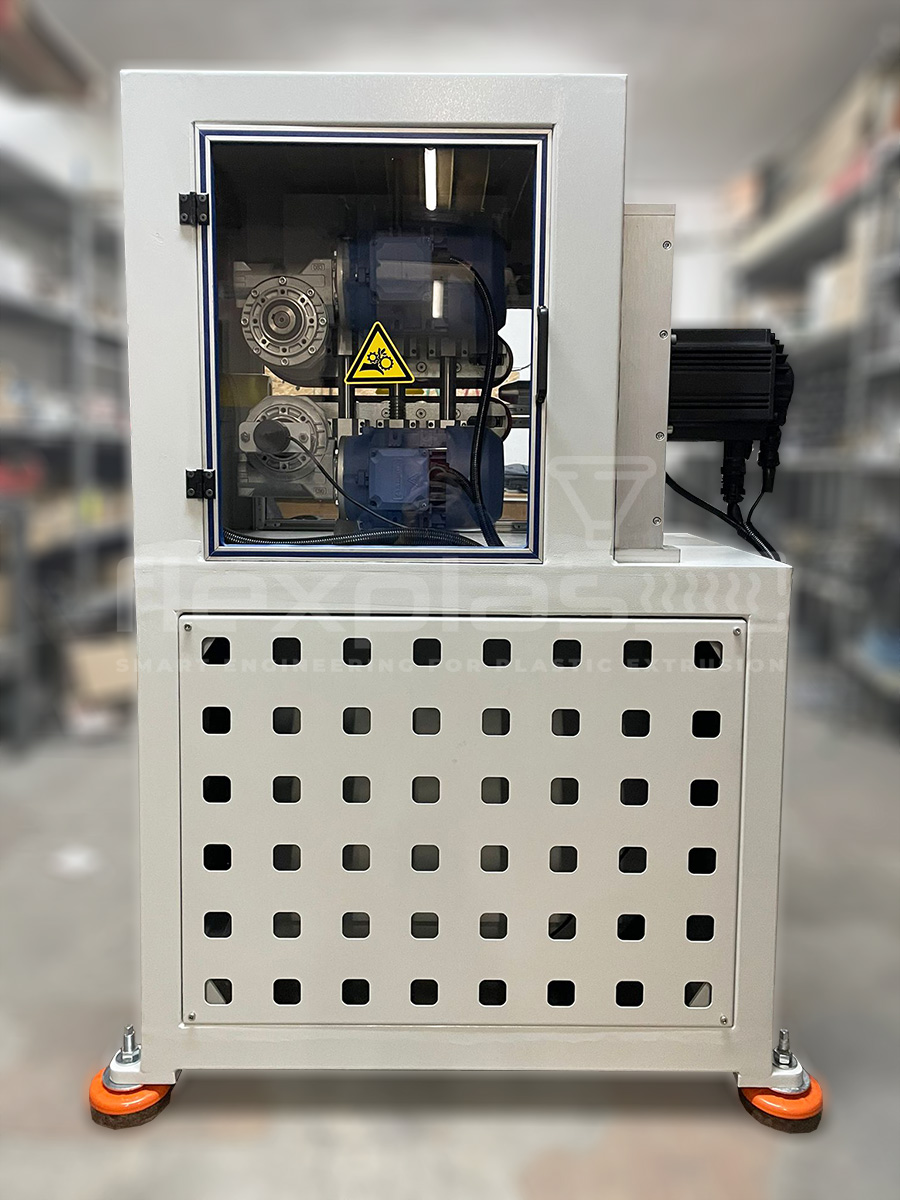

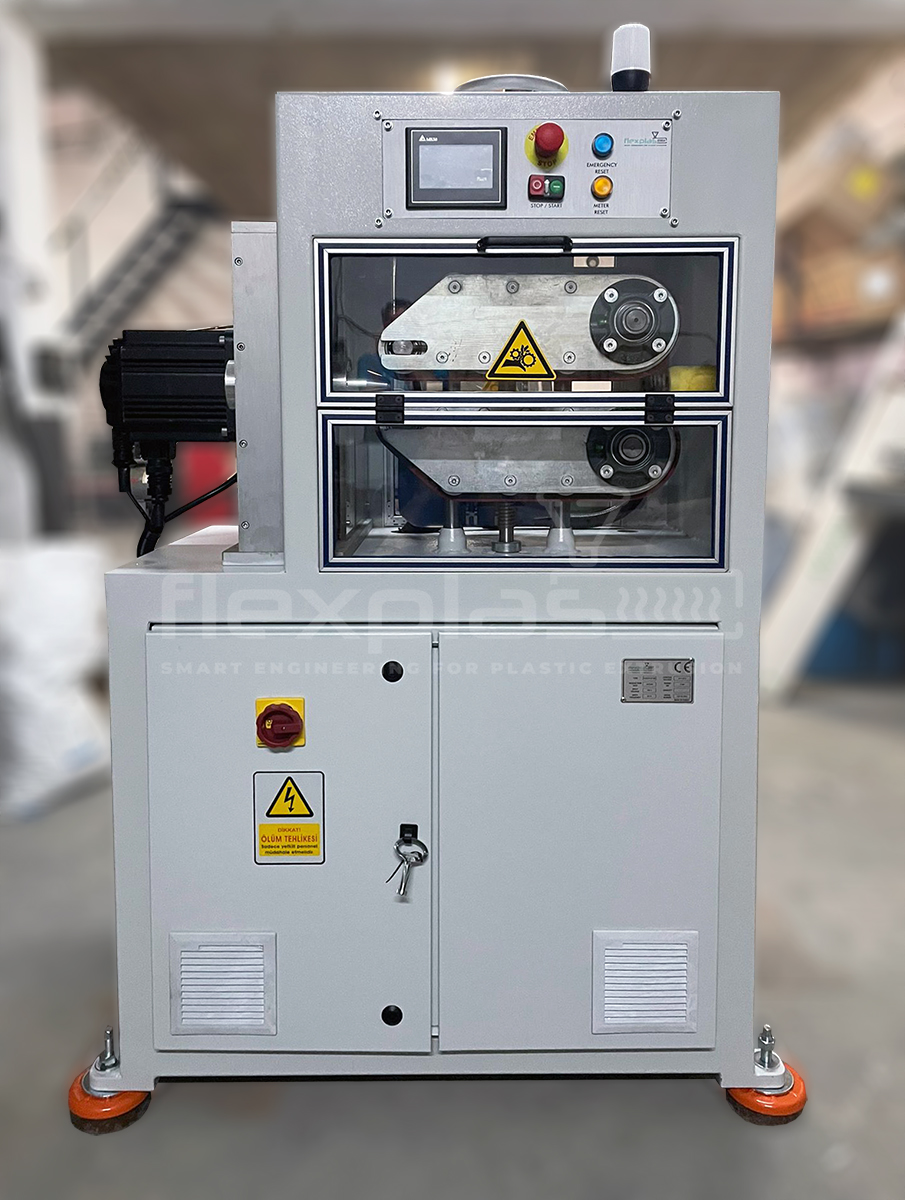

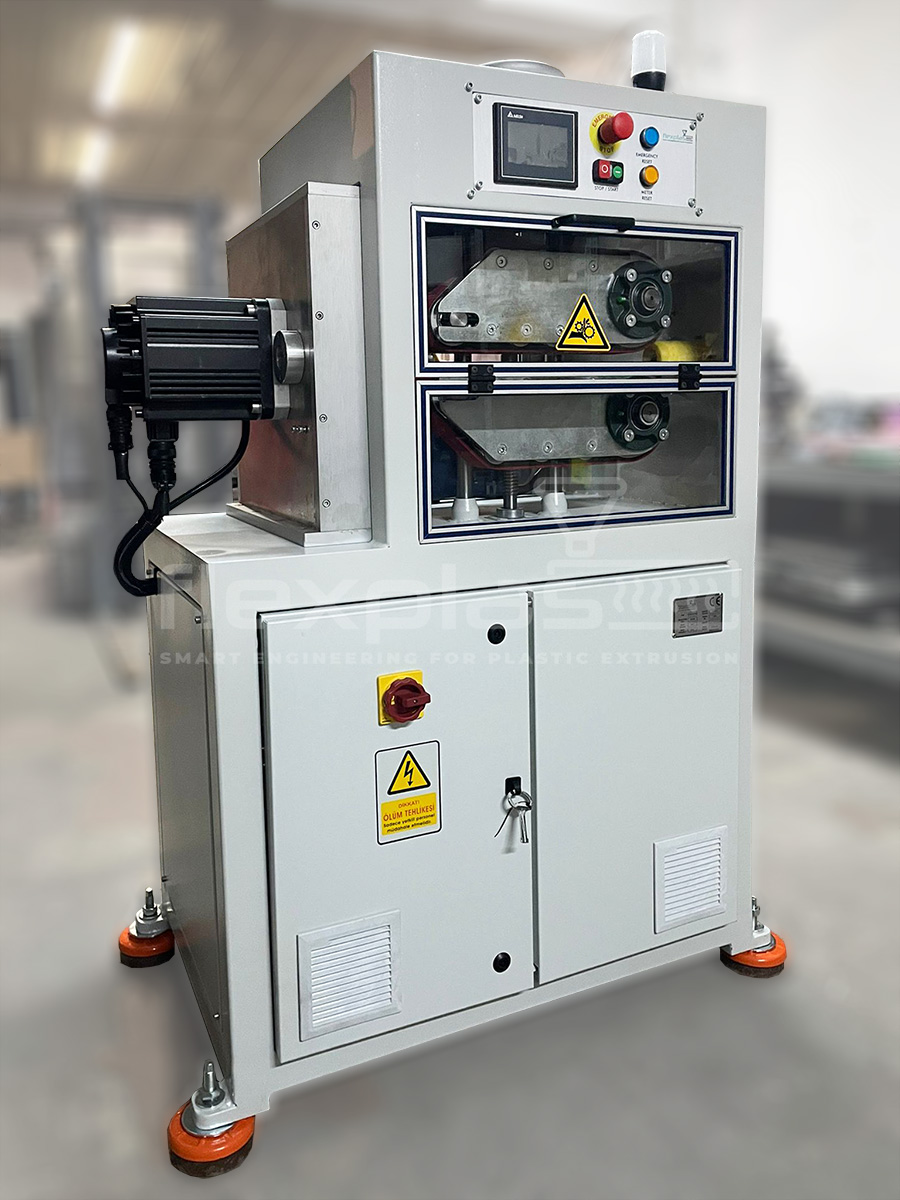

Flexplas haul-off cutters are the perfect solution for cutting of plastic and rubber hose and tubing at precision tolerances and high cutting speeds. Combination Puller/Cutters are available with your choice of puller belt sizes, cutting capacities and pulling torque to meet your specific needs.
Features
- Precise pulling – AC SERVO drive caterpillar puller motor uniformly draws and pushes material through to the cutter
- AC SERVO drive cutting unit with directly accoupled knife
- Smart PLC touch screen. Local (independent) or remote (with master control panel) control capability
- Variable blade speed in both on demand and flywheel cut mode
- Aluminum cutter bushings bored to size for round product
- Adjustable speed as per customer requirements
- Lower and Upper jaw synchronous operation with AC SERVO motor drive
- Cutter unit with clear anodized aluminum construction
- Blade lubrication
- Adjustable cutting length
- Optional Lower and Upper jaw independent height adjustment
- Optional pneumatic control for upper jaw
- POLY-V caterpillar puller belts with LINATEX coating
- Measurement system with encoder, meter set/reset feature
- Adjustable inlet-outlet guiding rolls
- Changeable bushings as per hose OD
- PILZ RFID emergency stop button switches
- Fully guarded & interlocked construction for operator safety
- Compliant with the latest EU/US standards
- Conformity to CE
