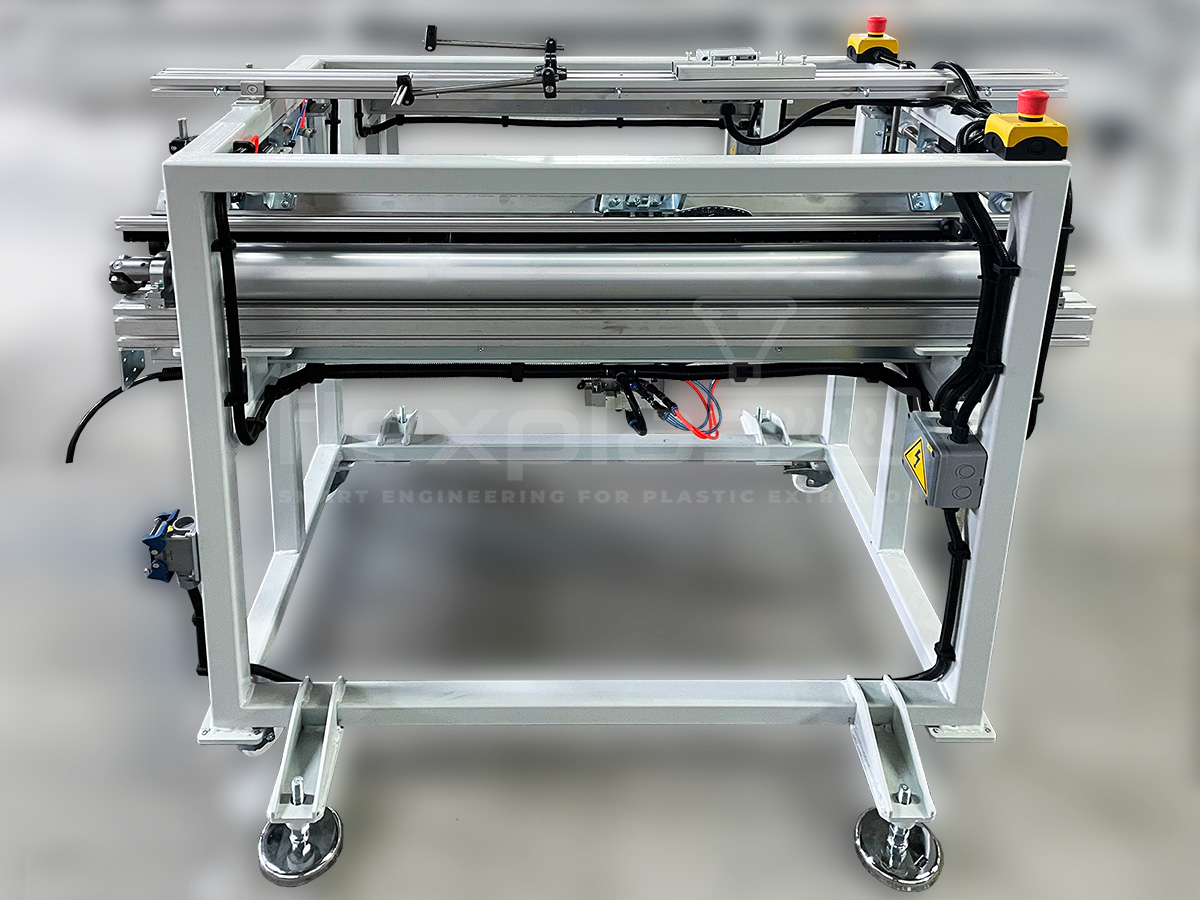

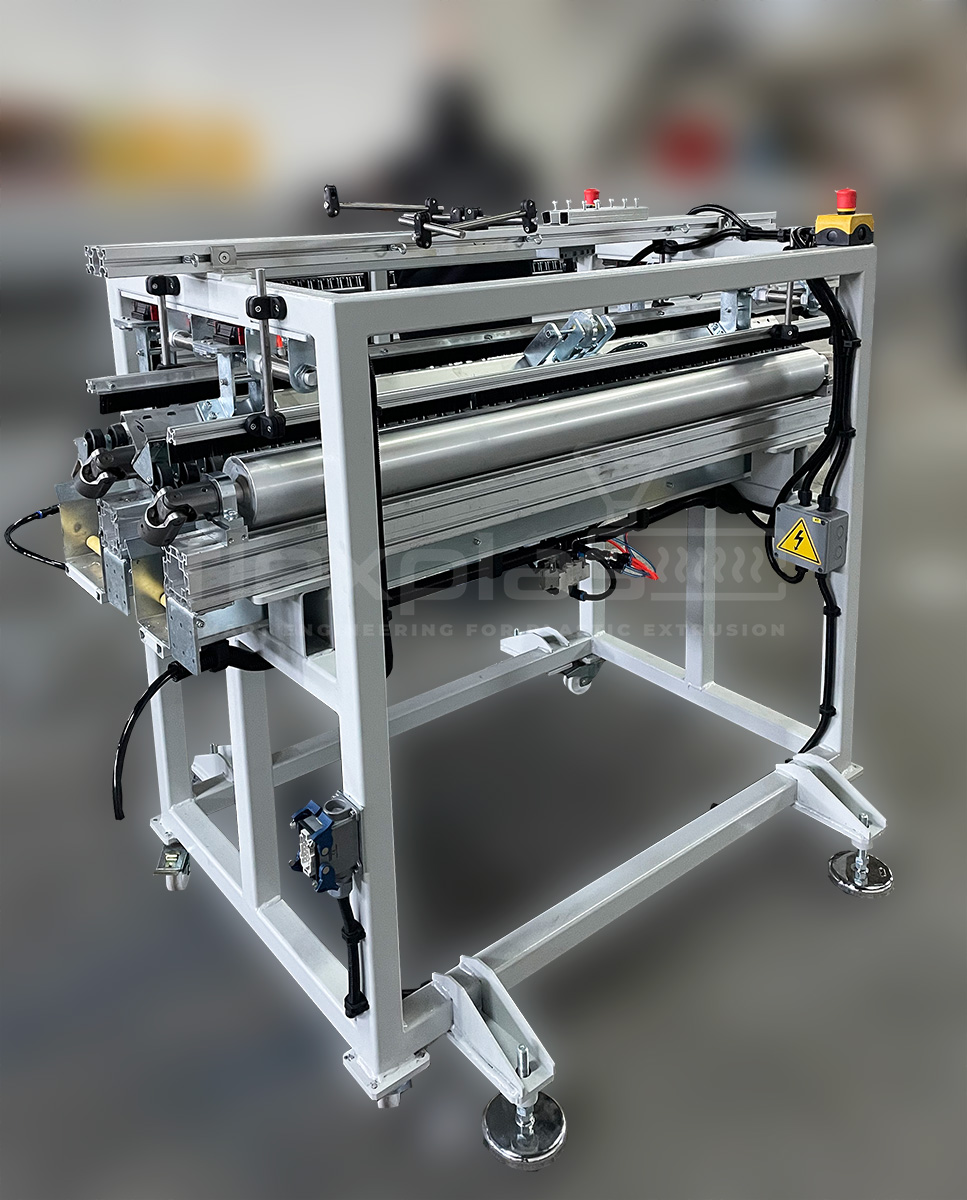

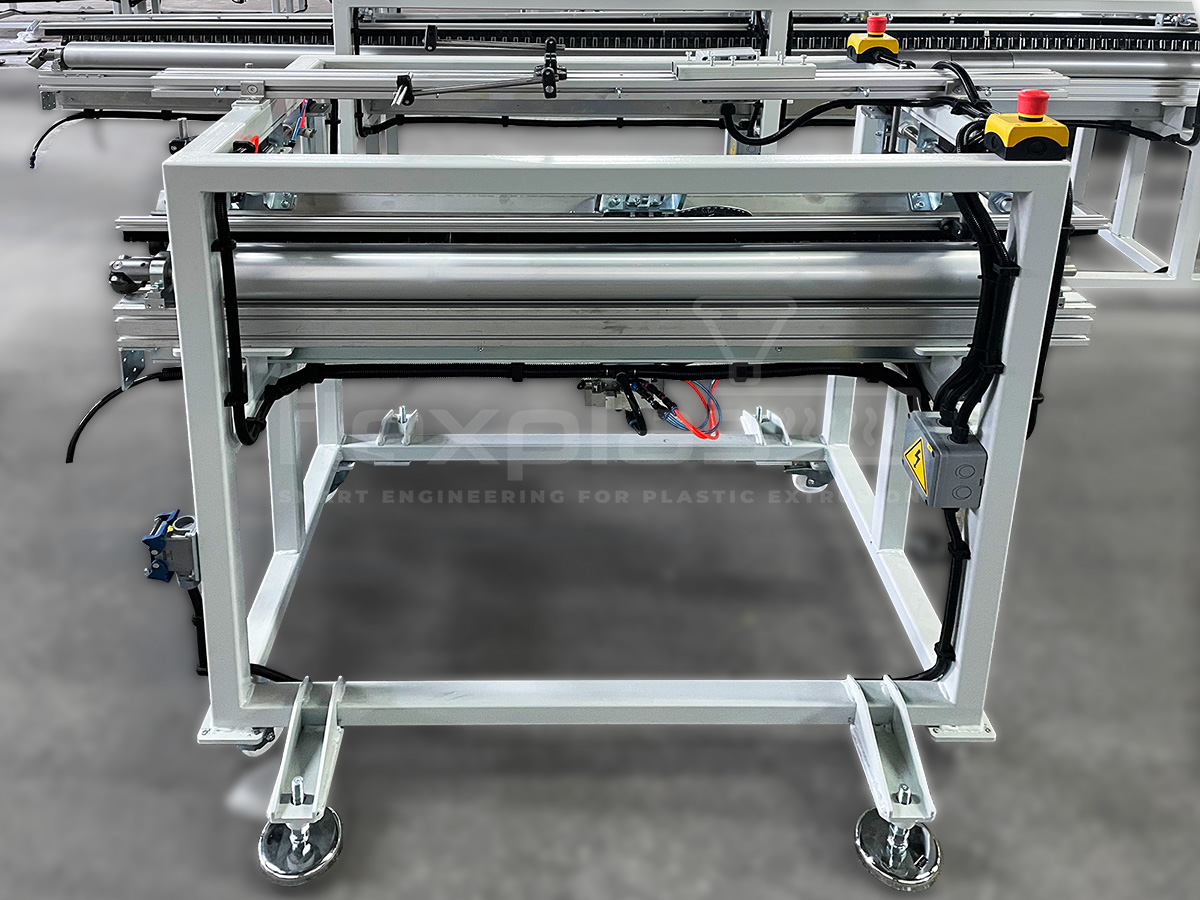

FLEXPLAS DRIVEN CONVEYORS are designed to your specifications and adapted to your specific extrusion line and manufacturing requirements for maximum efficiency

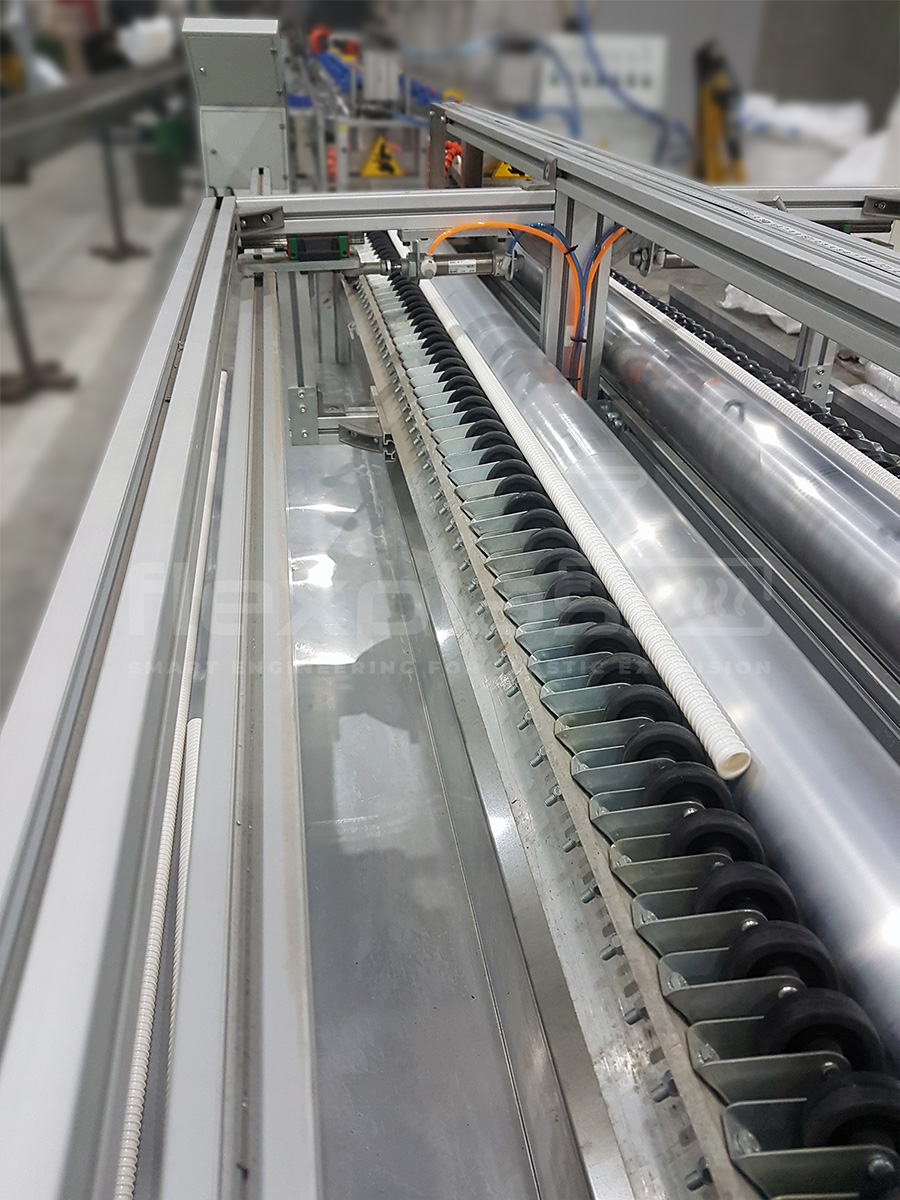

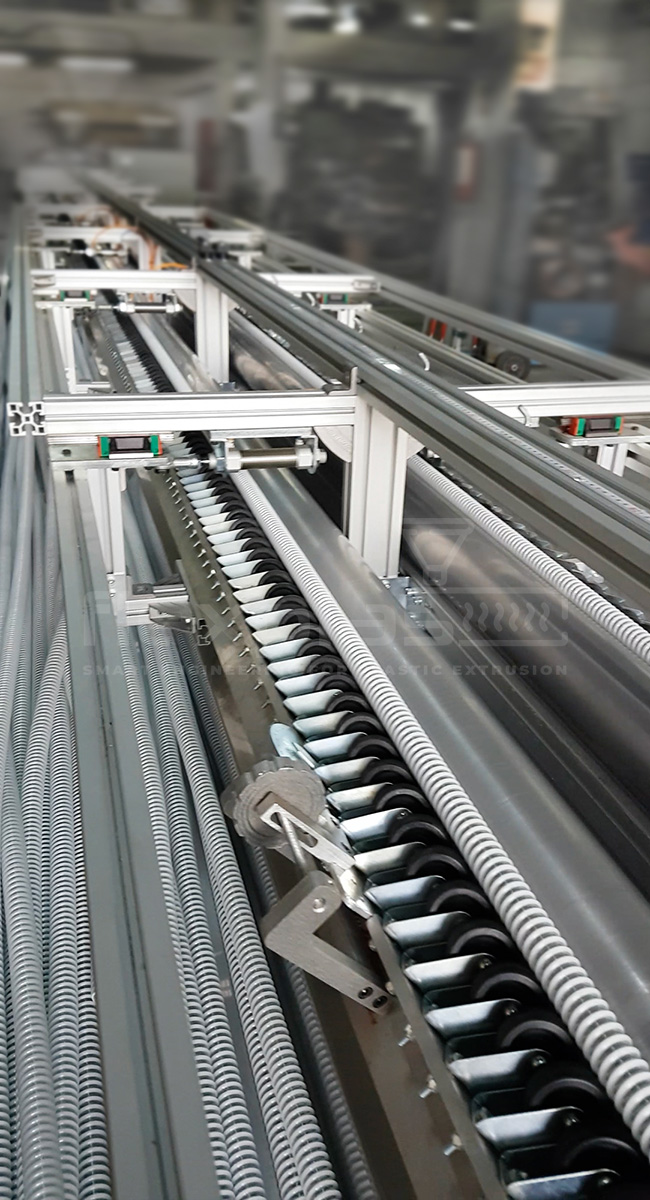

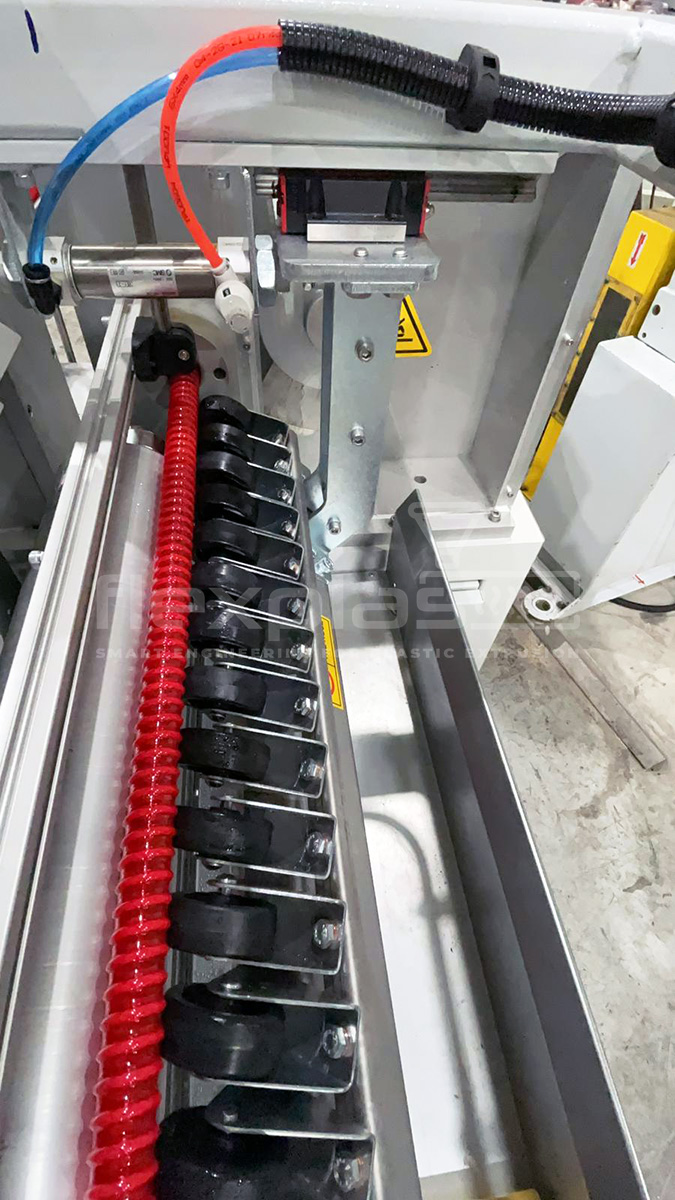

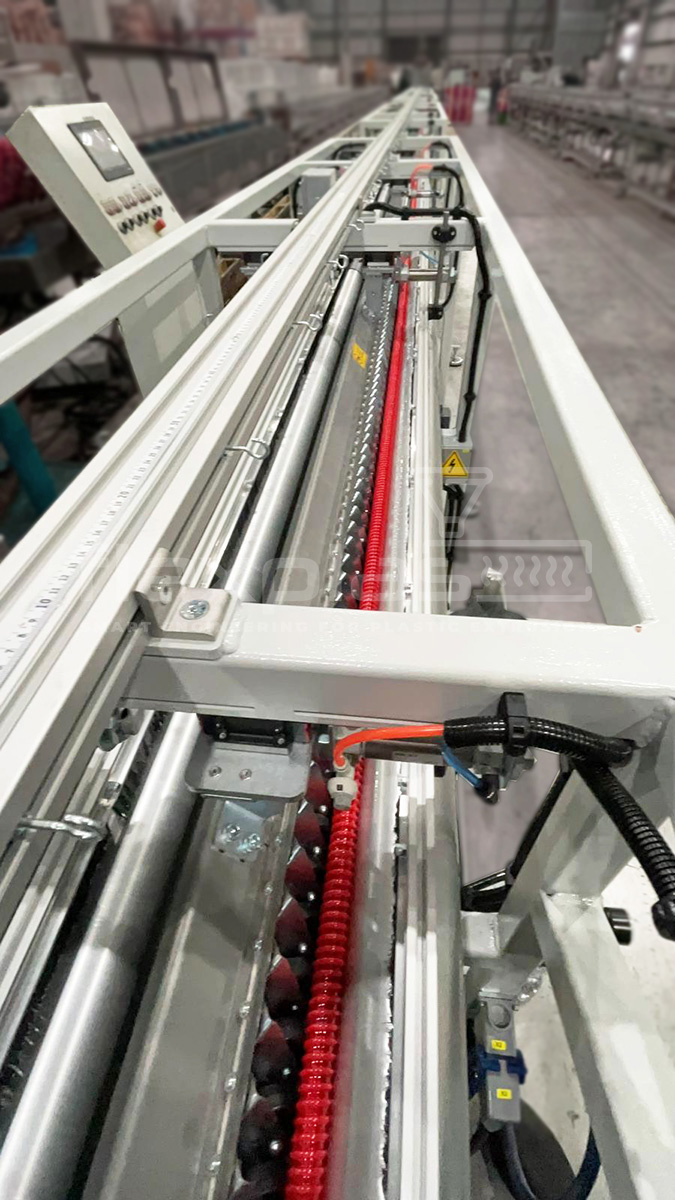

Flexplas take-away conveyors are designed with tilt/dump tables to be used when cutting flexible hoses and tubing. Typically located directly after cutting devices, Driven Conveyors enhance the cut length tolerance and cut quality by supporting and transporting the hose away from the cutter bushing at adjustable speeds typically more than line speed, eliminating accumulation and sorting confusion. The hose can then be optionally ejected by a pneumatic ejector system into a collection tray for operator removal or for coiling by a winding machine. The driven conveyor automatically discharges parts to a collection tray for this purpose. Our conveyors can be optionally configured for one side or dual side collection which is for double extrusion of the hose on the same extrusion line.
Application
Downstream equipment for hose, tubing, profile, and tape extrusion lines; especially very suitable for extrusion lines for spiral hoses, medical hoses, flexible polyurethane hoses, whirpoool/jacuzzi/SPA hoses, etc.
Features
- Stainless steel parts collection tray in various widths and lengths as per customer requirements
- Efficient extruded product handling with optional roller system
- Fully automated ejection of the extruded product by automatically dumping the cut extrusion to an off-line location, then quickly returning to home position, ready to accept the next length.
- Simple-to-use operation
- Adjustable height
- Activation by a laser sensor or manual operation
- Synchronized operation with any extrusion line
- One side or dual side collection
- Compliant with the latest EU/US standards
- Conformity to CE
