Best Option for Recycling

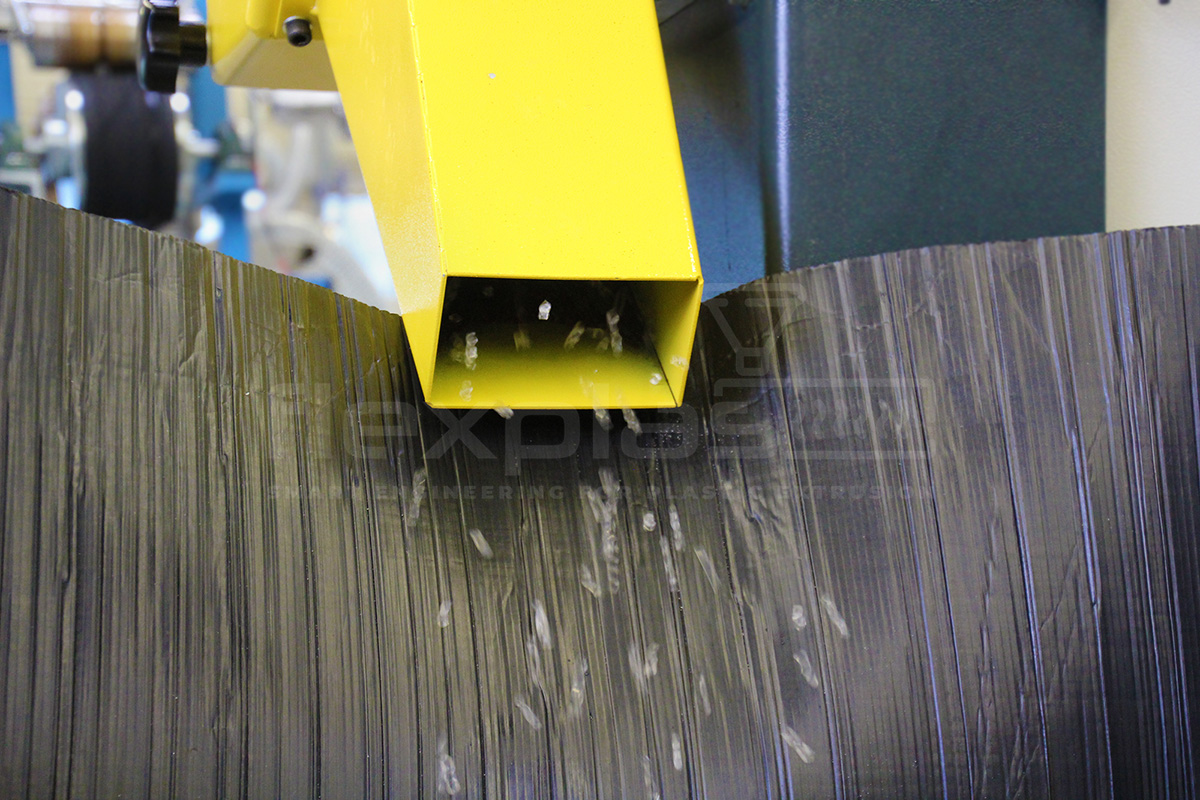

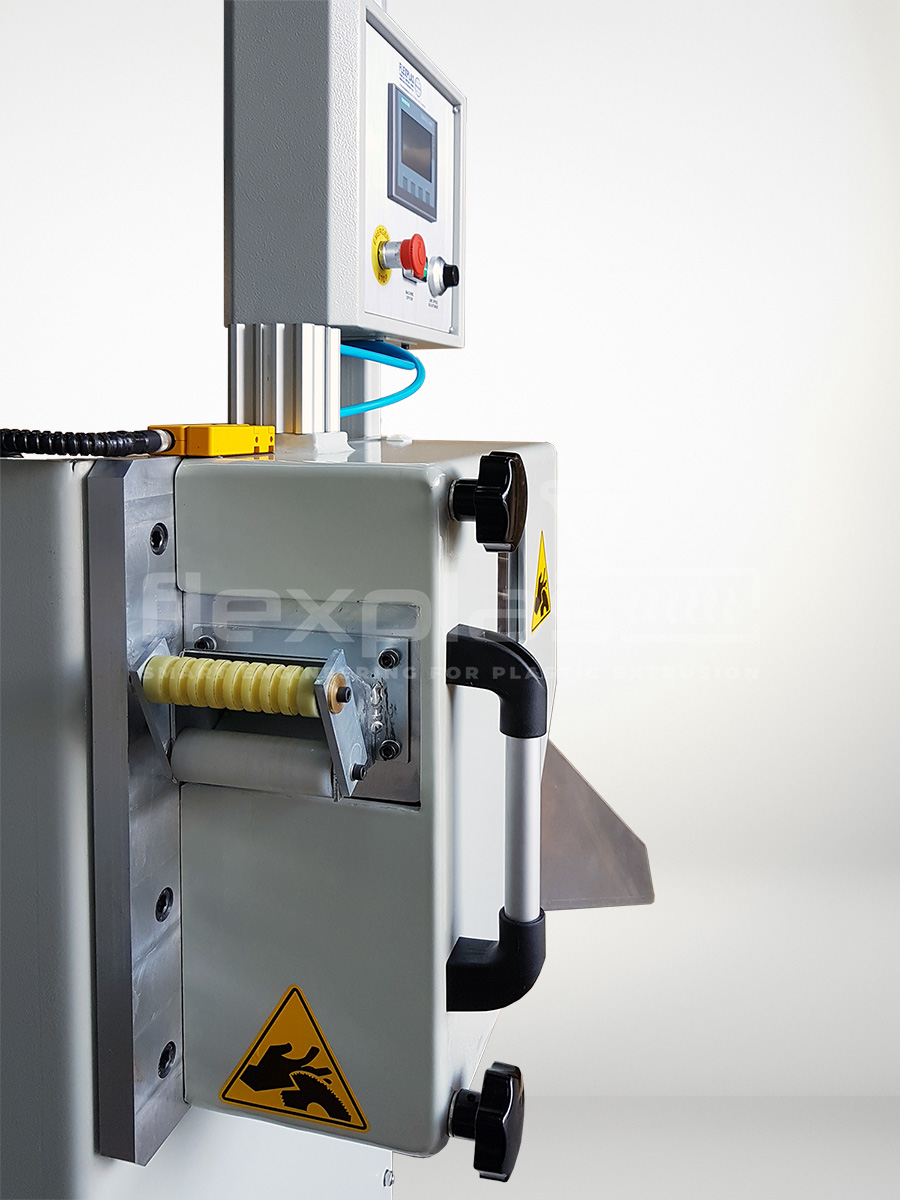

Flexplas Granulators are versatile, rugged, and designed for central or machine-side recycling of scrap hoses, tubes, scrap tapes and profiles. Our granulators are designed for light-medium throughput applications to provide the best size reduction and uniform regrind for extruders, and recyclers.
TECHNICAL DATA
| Drive System: | AC Motor Direct Drive |
| Motor Power of Pelletizer: | 2,2 kW |
| Motor Power of Feed Roller: | 1,5 kW |
| Operating Width: | 100 mm |
| Line Speed (with a pellet length of 3mm): | 20-85 m/min |
| Max number of strands: | 17 (3mm strand) |
Specifications

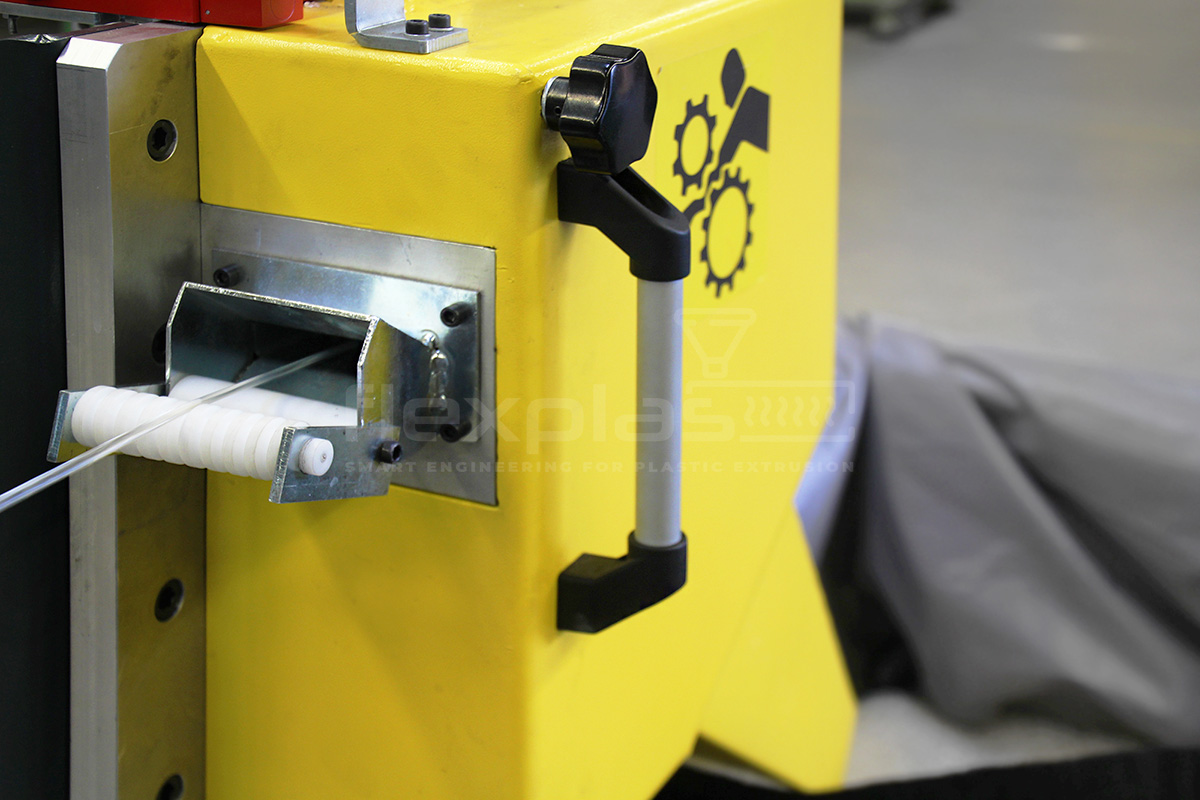

- Separate drives for cutting rotor and feed rollers
- Manual pellet size adjustment

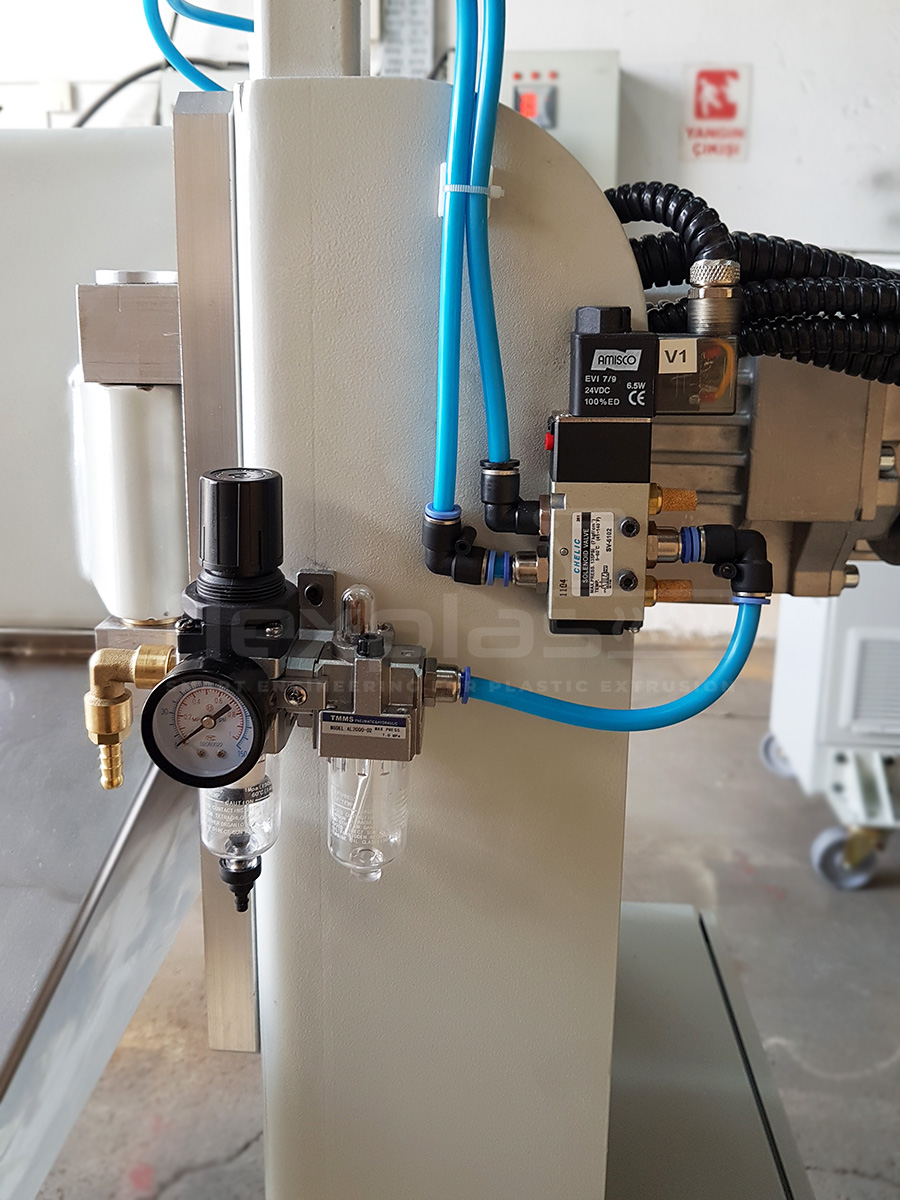

- Pneumatic pressure on the upper feed roller
- Good accessibility to the cutting area for cleaning and maintenance
- Quick exchange of tolls and rollers
- Suitable for soft, brittle and abrasive polymers
- Cutting process monitoring window
Options
- On-line pellet length adjustment
- In feed assistance for soft, elastic strands
- Interface for integration into external control system
