Extruder



Cutting-edge FLEXT Series Extruders

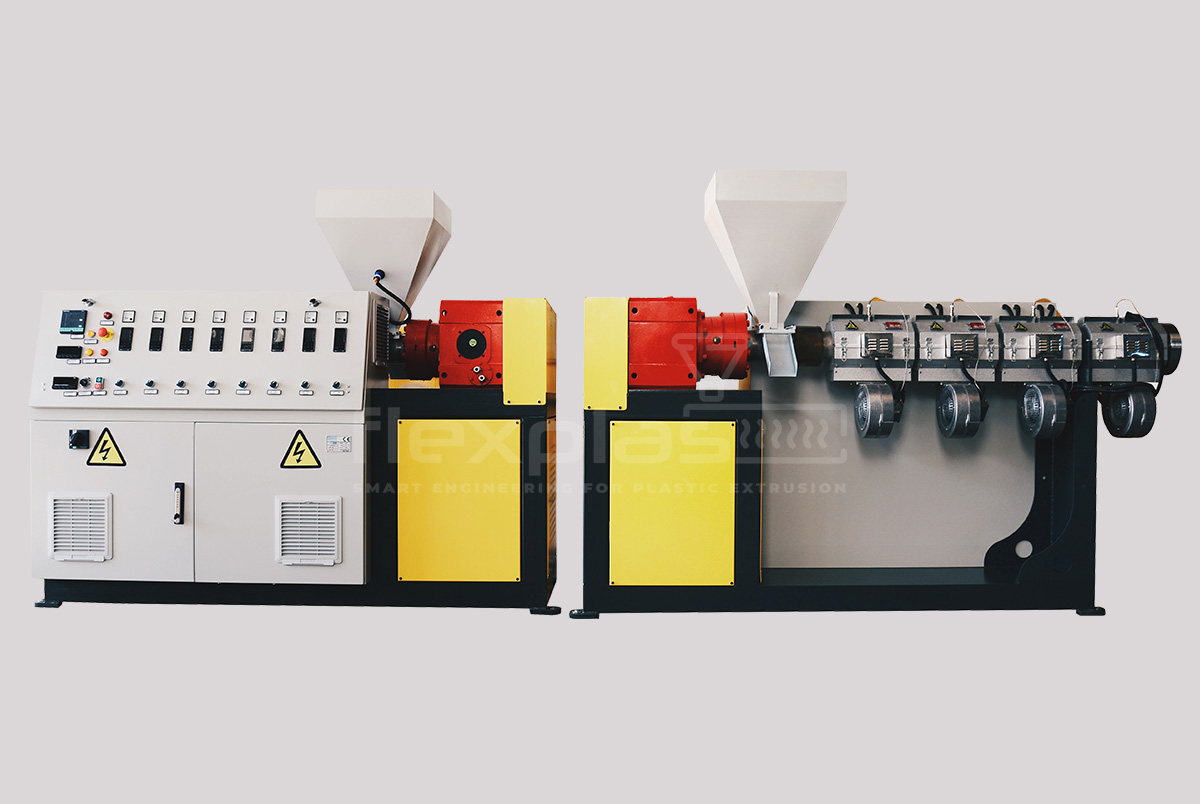

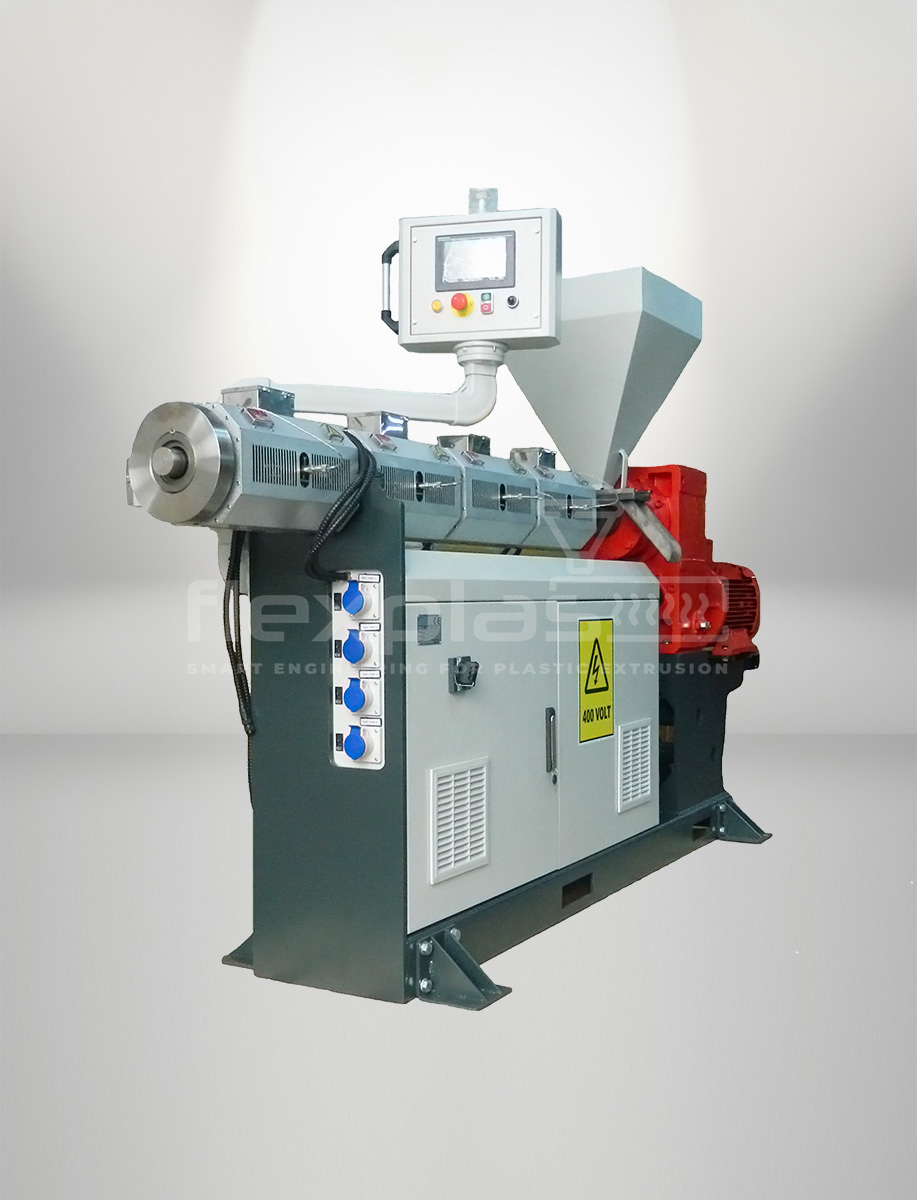

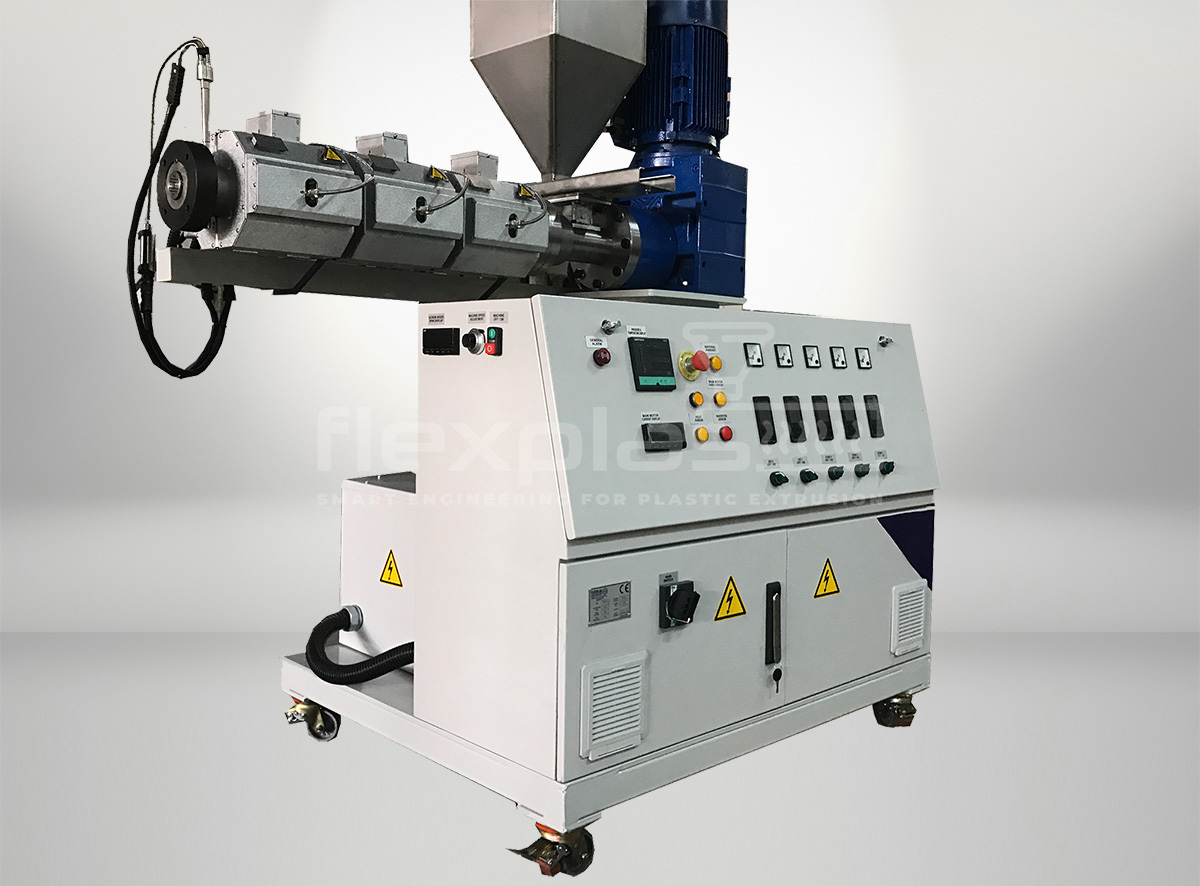

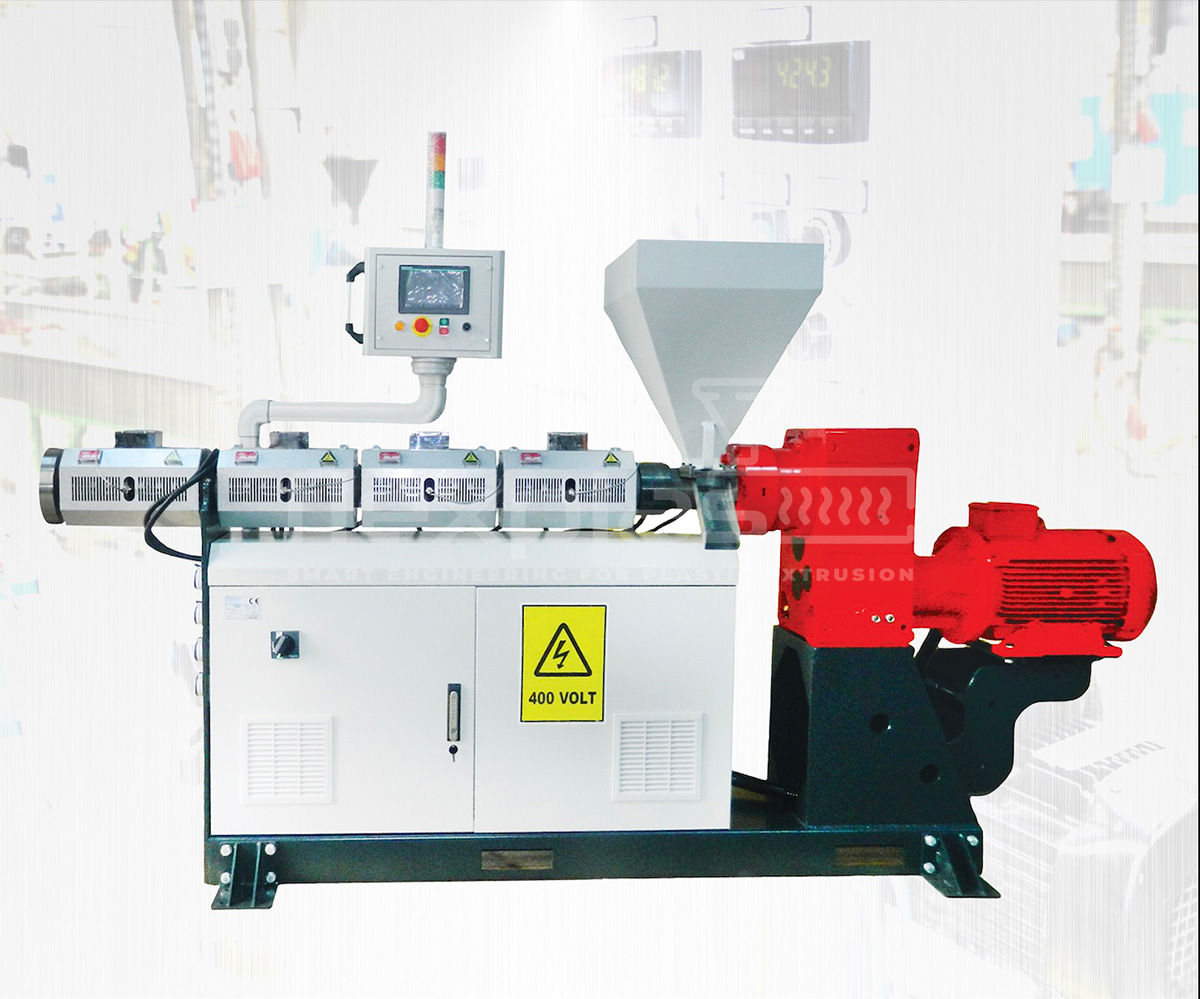

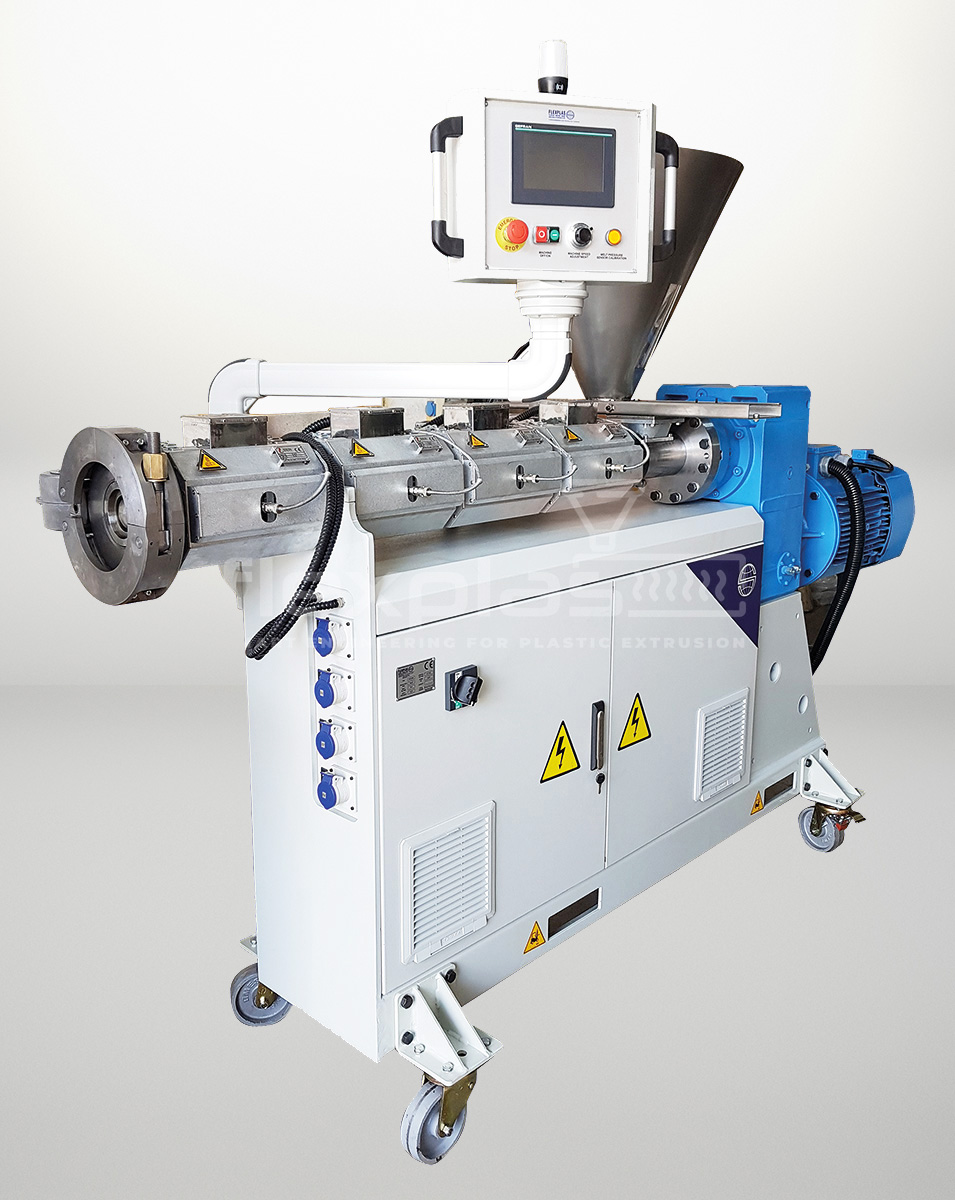

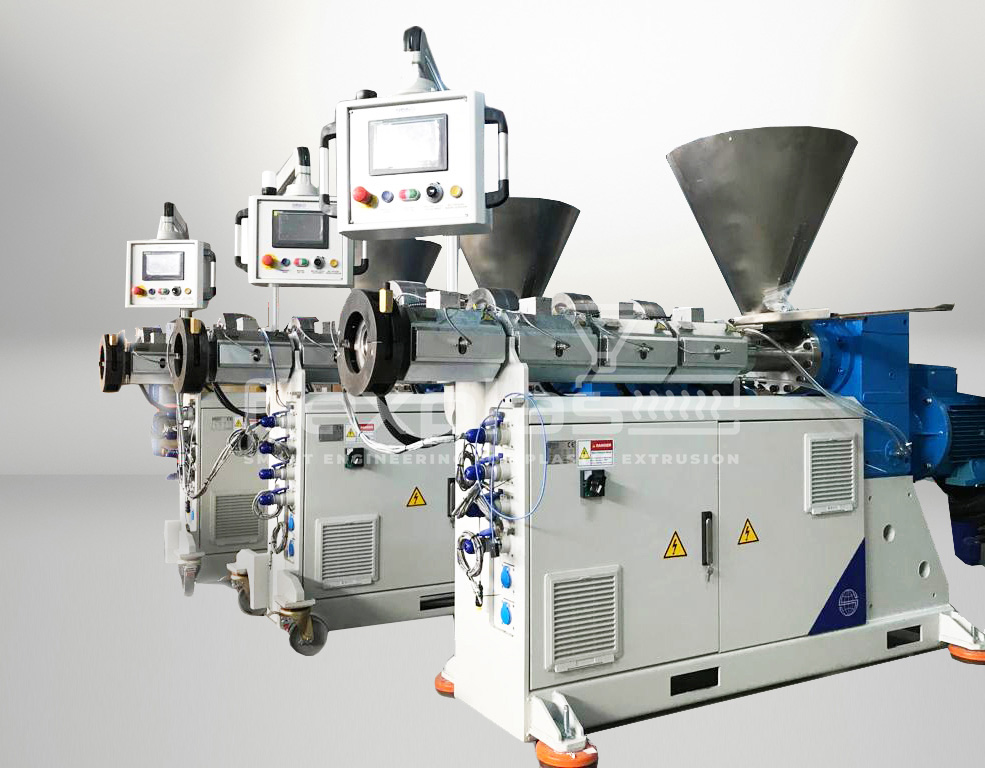

Flexplas proudly offer a wide range of FLEXT Series Single-Screw Extruders, either as a stand-alone extrusion machine or as part of a complete extrusion-system. All Flexplas extruders are characterized by an open, robust, and proven construction and high-quality craftsmanship. Screw diameters from 20 to 120 mm and process lengths of 25D to 30D combined with the appropriate screw geometry guarantee excellent plasticizing and maximum output for all popular thermoplastics. Digital, self-optimizing PID temperature control and a blower cooling system ensure outstanding process stability. Other features include Sliding hopper, ceramic heaters, screw designed for every type of material, energy-saving system, digital extruder control with touch screen.

Flexplas FLEXT-series extruders boast many a feature as standard. We also present various customized options for our customers to meet their production requirements.

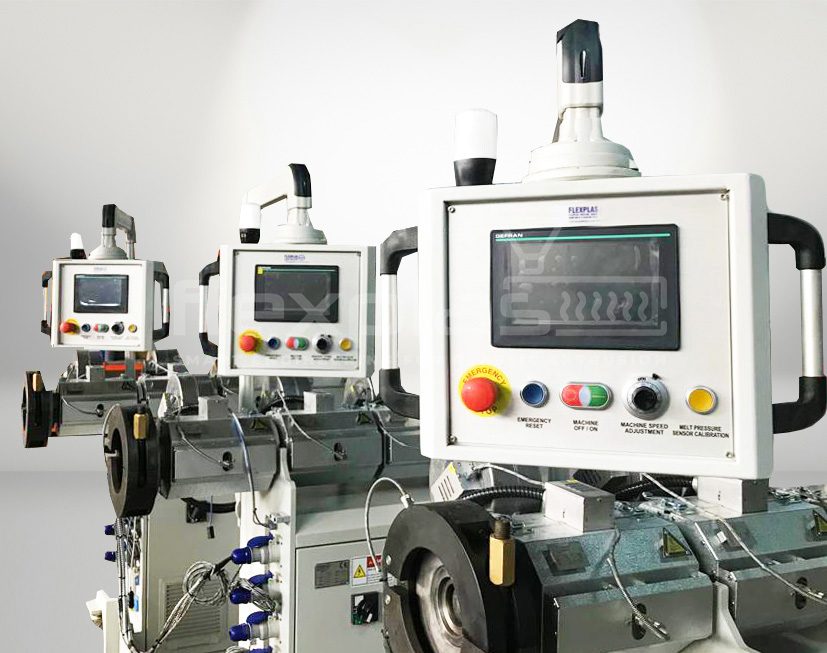

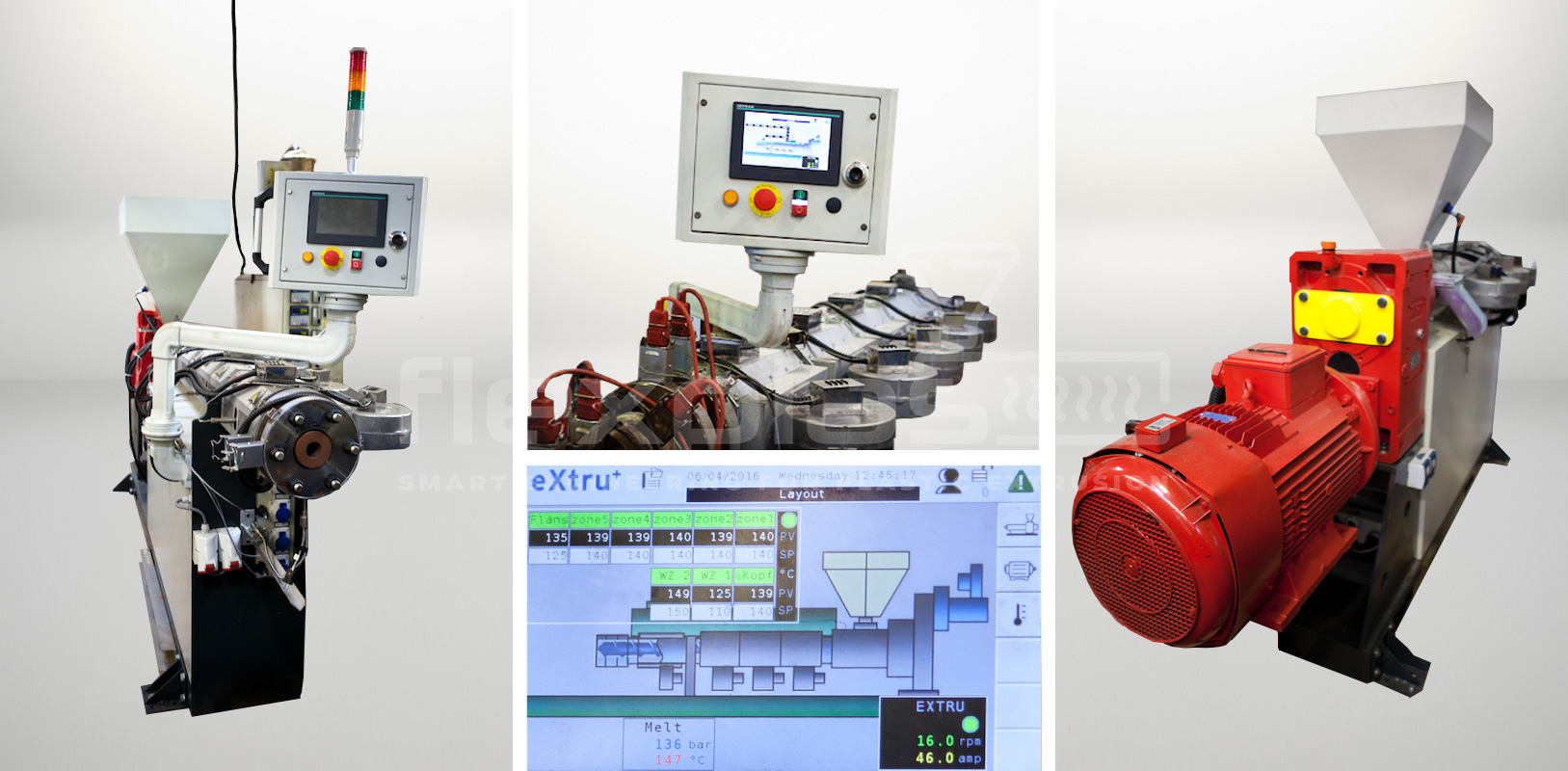

PLC with color touch screen control is simple to operate and provides you with total control over hose production. All production data is captured and can easily be exported for analysis via Ethernet and SCADA System. Access to as little or as much data, settings, alarms, etc. is for you to decide – you are in control. Change the language of the control system at the touch of button. PLC touch screen provides line operators with the most comprehensive and easy to use control system available.

We offer a wide range hi-tech and sophisticated single screw extruders for a wide variety of required end product.

Features

  • Modernly designed extruder body where all components are fully enclosed
  • Changeable barrel, regular and barrier type screws in high-grade 1.8550 nitride steel with rupture disc for long life
  • Smooth bore and grooved feed technology
  • High efficiency direct/belt drive motors to adapt the drive system to changing product requirements and process conditions, i.e. processing of PP or HDPE, etc.
  • Changeable screw tips
  • Double reduction monobloc parallel shaft gearing with serpentine cooling system for extended lifespan
  • Automated hopper system

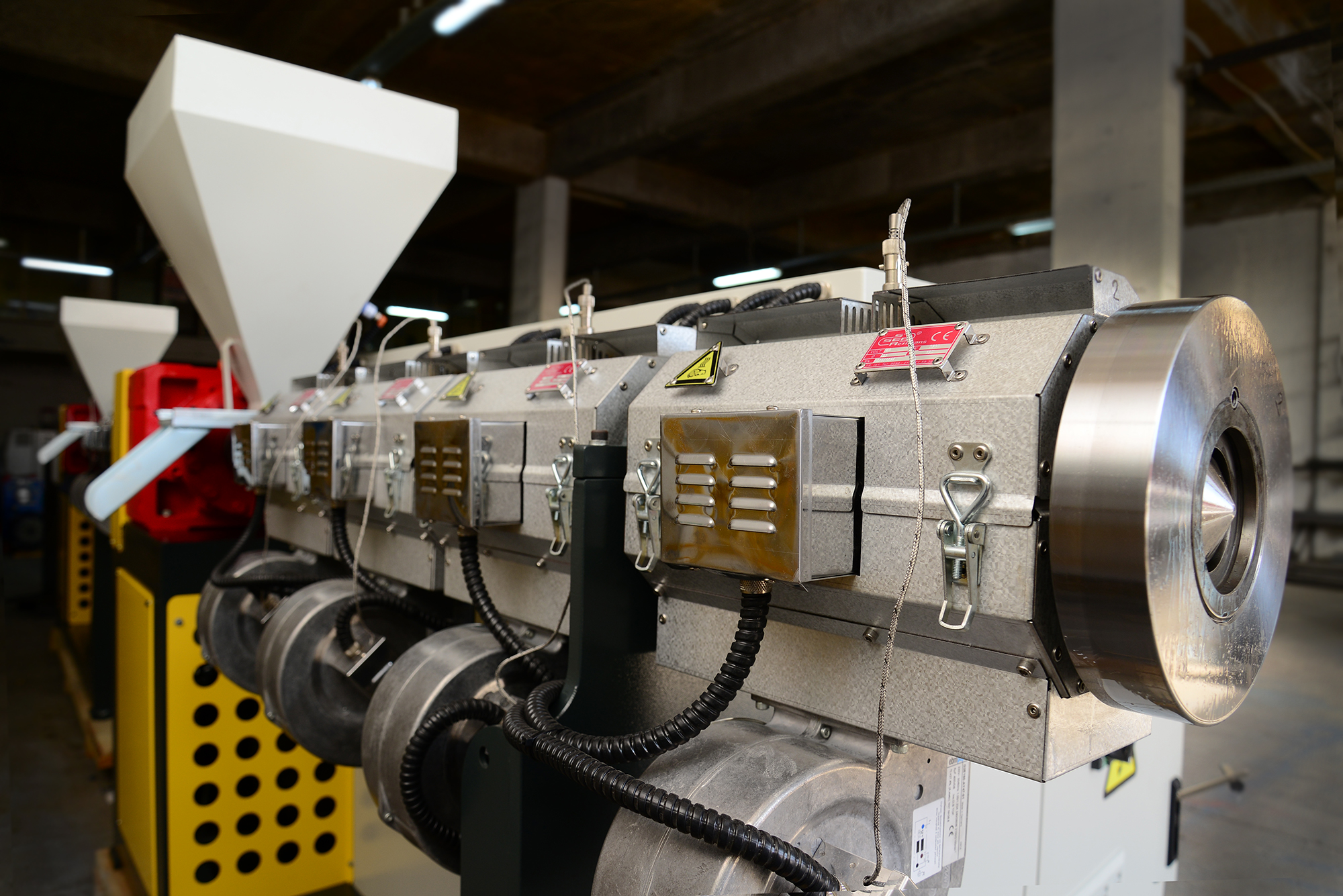

  • Long-life ceramic heater belts
  • AC Drive and Power unit

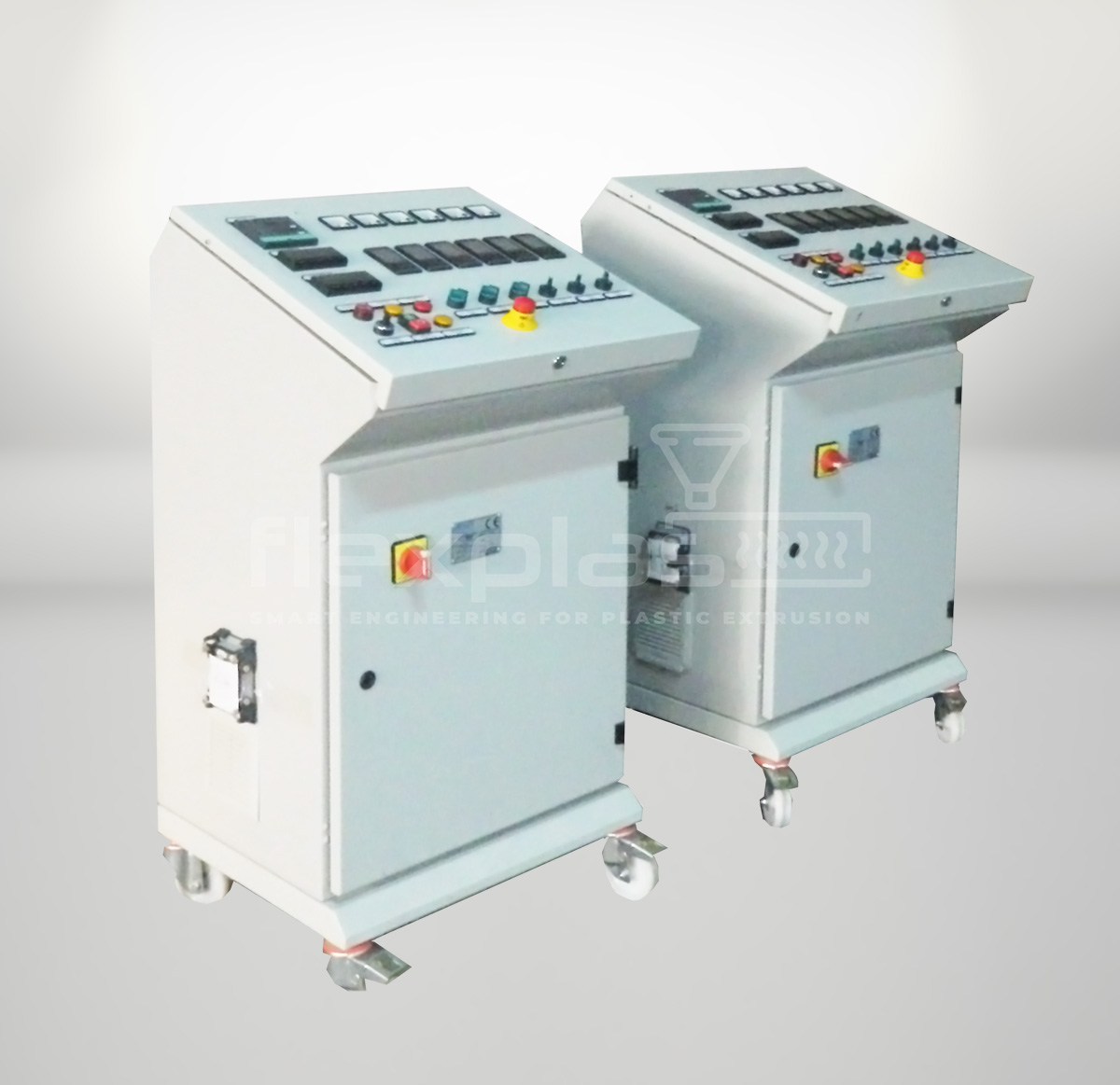

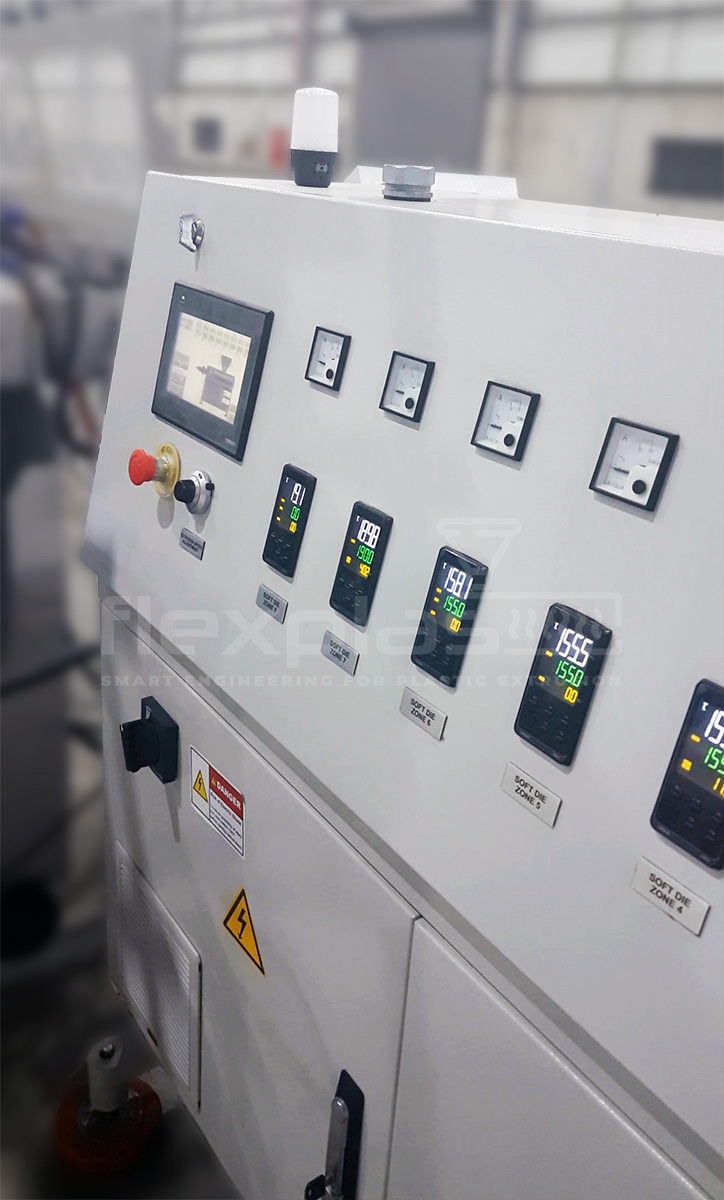

  • State-of-the-art electrical system design, integral or free standing control panel
  • Solid state relays to reduce both current cycle times and maintenance. The controllers are coupled to solid state relays for accurate heat control

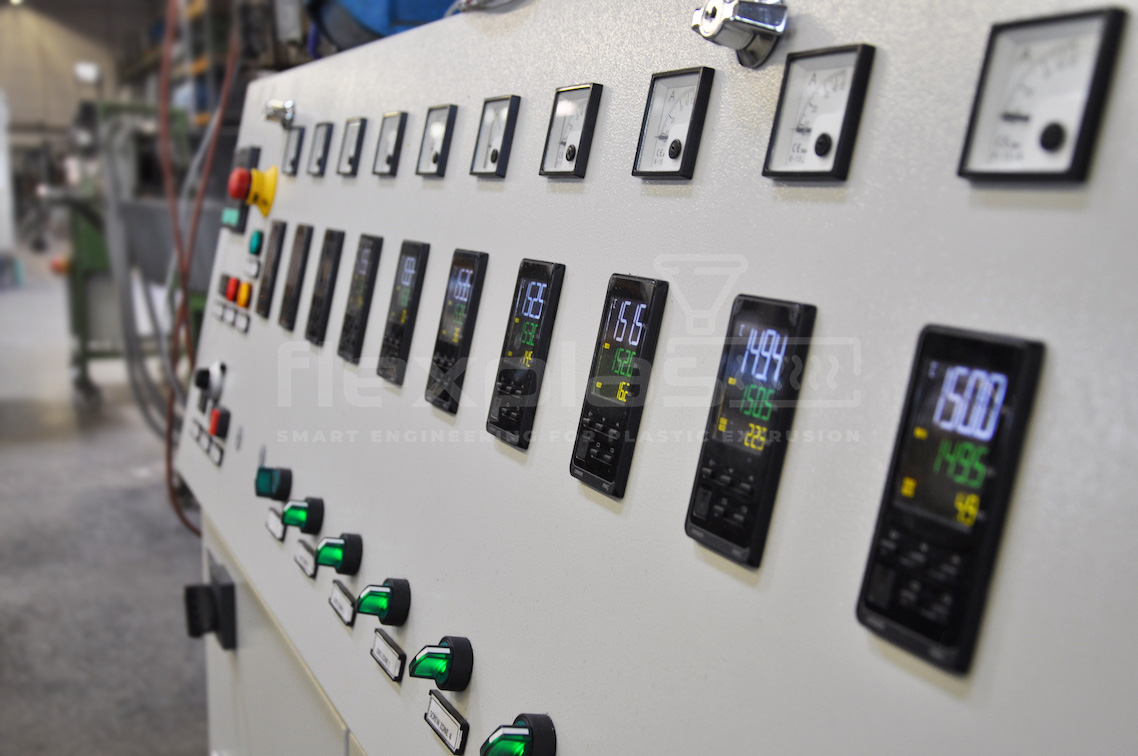

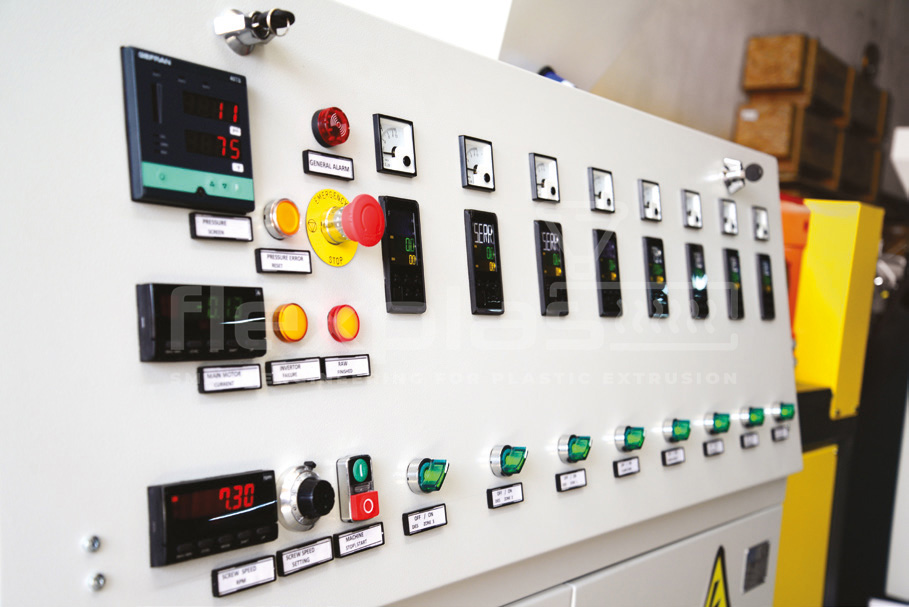

  • Digital melt temperature, melt pressure, screw speed and ampmeter readouts
  • Melt heat sensor
  • Melt pressure sensor
  • Programmable frequency inverter for infinite variable screw speed and high torque even at low screw speeds
  • Alarm indication via a flashing light system
  • Emergency Stop
  • Long service life due to the robust and high quialty designs of gear unit, screw and barrel
  • Useful for diverse applications in Profile, Tubing, etc.
  • Suitable for all types of thermoplastics
  • Lower energy consumption, 30% less than traditional extruder
  • CE marking certifying full compliance with EU regulations
  • Fully satisfying After-sale service

Optional Features

  • PLC Control system with visualization and touch in local language for single extruder to comples line control
  • Bimetallic barrel and screw for prolonged endurance
  • Changeable screw
  • ECO DRIVE - energy saver system
  • Direct coupled motor mounting
  • Customized extruder design available for special processing needs; slim design, short-body design available as per request
  • Customization of low screw speed and high torque or high screw speed with high melt throughput
  • Additional heat zones on the barrel and the die

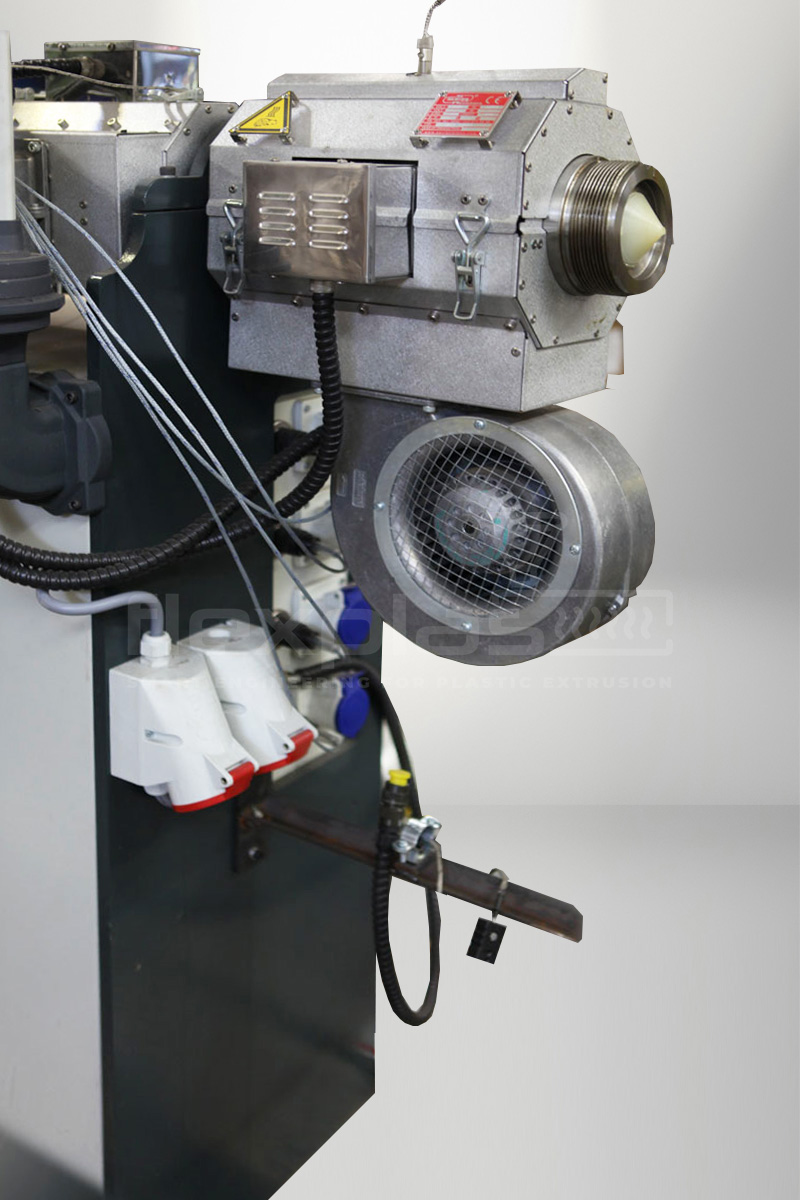

  • Tool Connection Flange; the barrel can be supplied with a thread outlet end or a complete flange assembly to suit the customer's requirement
  • Hopper loading sensor
  • Color as per customer's request
TYPE

FLEXT-25
FLEXT-30
FLEXT-45
FLEXT-60
FLEXT-65
FLEXT-75
FLEXT-80
FLEXT-90
Screw Diameter
 mm 25 30 45 60 65 75 80 90
Motor
 kW 5,5 7,5 22 30 45  55  75  75
Max. Screw Speed
 rpm 200  160  170  110  120  100  100  95
Heating Zones
   4 5 6 7 7 7 7  8
Production Capacity (kg/h)
 Soft PVC 13  22  75  110  130  180  220  250
Hard PVC  13 22 50 85  95  110  170  230
LDPE 10  15  55  90  105  160  185  215
HDPE  10 15  55  90 105 160 185 215
TPU 13  20  45  80  90  110  130  160
PP 9  12  50  75  95  110  160  220

**CHART DATA USING STANDARD 25:1 L/D. EXTRUDERS ARE DESIGNED PER PROCESS AND POLYMER TYPE.
ACTUAL L/D, HP AND SPEED MAY VARY.

**All dimensions and output are approximate.  Contact us to discuss building a machine to your specifications.
